Waldorf 800 Series RN8819GC - 1200mm Gas Range Convection Oven

PENRITH, NSW - Delivers Nationally

Waldorf 800 Series RN8819GC - 1200mm Gas Range Convection Oven :      $11,604 AUD ($12,764 Inc. GST)

  • Specifications
    Not specified
    Sellers stock ID:


    2 burner cooktop range with 900mm griddle
    2/1 GN gas convection oven
    2 x 28MJ/hr open burners
    3 x 20MJ/hr griddle burners
    Storage cabinet on right hand side
    Heavy-duty stainless steel finish
    Flame failure protection on all burners
    Removable heavy-duty cast iron burners and vitreous enamel pot stands
    Heavy-duty reinforced control knobs
    Drop down door with welded frame
    Oven lining is welded and lined with vitreous enamel
    Cool touch stainless steel door handle
    Adjustable feet and 2 additional rollers
    Easy clean, installation and service

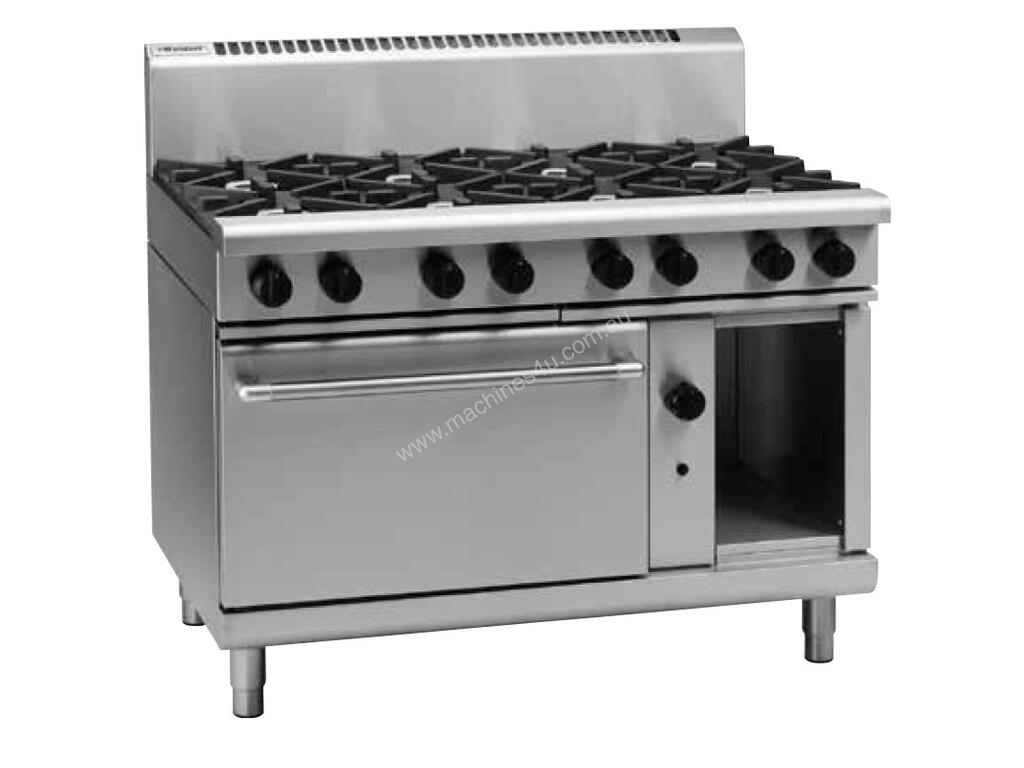

    (Image Shown as RN8810GC)

    Overall Construction

    Galvanized steel chassis&nbsp
    Welded hob with 1.5mm 304 stainless steel bull nose&nbsp
    Splashback and hob sides 1.2mm 304 stainless steel
    Front panels and oven sides 0.9mm 304 stainless steel
    Full 0.9mm stainless steel storage cabinet on RH side&nbsp
    150mm legs in 63mm dia. heavy-duty 1.2mm 304 stainless steel with adjustable feet


    Cast iron 28MJ/hr open burners with forged brass cap&nbsp
    Vitreous enamelled cast iron potstands&nbsp
    Vitreous enamelled open burner spill covers&nbsp
    Cast iron simmer plates (optional extra)&nbsp
    12mm thick mild steel griddle plates&nbsp
    2.5mm 304 stainless steel griddle splash guards&nbsp
    Vitreous enamelled spill trays&nbsp
    Aluminised steel internal construction&nbsp
    Griddle sections are standard on RH side. Available on LH side or centre to order or by conversion.


    Fully welded and vitreous enamelled oven liner&nbsp
    GN 2x1 capacity with 4 position racking&nbsp
    Heavy-duty easy remove heavy wire chrome rack supports&nbsp
    Cast iron even heat oven sole plate&nbsp
    30MJ oven burner&nbsp
    Pilot and flame failure with piezo ignition&nbsp
    100W heavy-duty motor&nbsp
    200mm diameter heavy-duty circulation fan&nbsp
    Welded frame drop down door with heavy-duty spring hinge system&nbsp
    0.9mm 304 stainless steel door outer&nbsp
    1.0mm press formed vitreous enamelled door inner&nbsp
    High density fibreglass insulated&nbsp
    Stay cool stainless steel door handle with cast metal handle mounts&nbsp
    Supplied with two chrome wire oven racks


    Large easy use control knob - heat resistant reinforced
    Easy view control settings on knob


    Variable high to low controls to open burners
    Open burners flame failure standard with pilot burners optional
    Variable high to low controls to griddles
    Griddles standard with pilot, flame failure and piezo ignition


    50-320?C thermostatic control&nbsp
    Indicator lights for power and heating&nbsp
    Piezo ignition to pilot burner&nbsp
    Flame failure&nbsp
    Fan and burner automatic off when door open

    Cleaning and Servicing

    All models with easy clean stainless steel external finish&nbsp
    Lift off burners heads and vitreous enamelled burner spill covers&nbsp
    Vitreous enamelled spill trays under open burner and griddle sections&nbsp
    Bottom sill removable for oven burner and pilot access&nbsp
    Removable oven racking and sole plate&nbsp
    Easy clean vitreous enamel oven and door inner&nbsp
    Door hinge spring adjustable on unit (door outer removed)&nbsp
    Door disengages for lift off removal and increased service access&nbsp
    All parts front accessible from installed position&nbsp
    Access to all parts from front of unit
