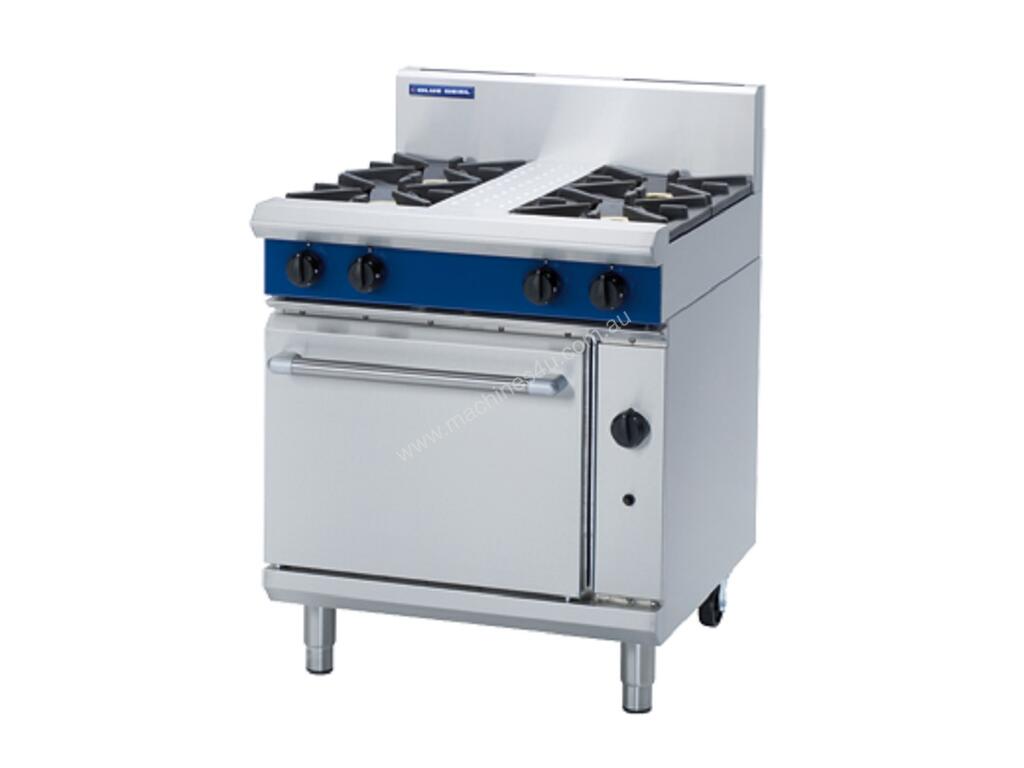

Blue Seal Evolution Series G505D - 750mm Gas Range Static Oven

PENRITH, NSW - Delivers Nationally

Blue Seal Evolution Series G505D - 750mm Gas Range Static Oven :      $5,823 AUD ($6,405 Inc. GST)

  • Specifications
    Condition:
    New
    Year:
    Not specified
    Make:
    Blue Seal
    Model:
    G505D
    Sellers stock ID:
    411
    Description

    4 burners cooktop range
    1/1 GN gas static oven
    4 x 28MJ/hr open burners
    Heavy-duty stainless steel finish
    Flame failure protection on all burners
    Removable heavy-duty cast iron burners and vitreous enamel pot stands
    Heavy-duty reinforced control knobs
    Drop down door with welded frame
    Fully welded and vitreous enamelled oven liner
    Cool touch stainless steel door handle
    Adjustable feet and 2 additional rollers
    Easy clean, installation and service

    Overall Construction

    Galvanized steel chassis&nbsp
    Welded hob with 1.5mm 304 stainless steel bull nose&nbsp
    Hob sides 1.2mm 304 stainless steel&nbsp
    Splashback 1.2mm 304 stainless steel&nbsp
    Front panels and oven sides 0.9mm 304 stainless steel&nbsp
    Vitreous enamelled hob control panel&nbsp
    63mm dia. heavy-duty 1.2mm 304 stainless steel adjustable legs at front and two rollers at rear

    Cooktop

    Cast iron 28MJ/hr open burners with forged brass cap&nbsp
    Vitreous enamelled cast iron potstands&nbsp
    Vitreous enamelled open burner spill covers&nbsp
    Cast iron simmer plates (optional extra)&nbsp
    12mm thick mild steel griddle plates&nbsp
    2.5mm 304 stainless steel griddle splash guards&nbsp
    Stainless steel spill trays&nbsp
    Aluminised steel internal construction Griddle sections are standard on RH side. Available on LH side to order or by conversion.

    Oven

    Fully welded and vitreous enamelled oven liner&nbsp
    GN 1/1 capacity with 4 position racking&nbsp
    Heavy-duty easy remove heavy wire chrome rack supports&nbsp
    Cast iron even heat oven sole plate&nbsp
    30MJ oven burner&nbsp
    Pilot and flame failure with piezo ignition&nbsp
    Drop down door&nbsp
    0.9mm 304 stainless steel door outer&nbsp
    1.0mm vitreous enamelled door inner&nbsp
    High density fibreglass insulated&nbsp
    Supplied with two chrome wire oven racks

    Controls

    Large easy use control knob - heat resistant reinforced&nbsp
    Easy view control settings on knob

    Cooktop

    Variable high to low controls to open burners&nbsp
    Open burners flame failure standard with pilot burners optional&nbsp
    Variable high to low controls to griddles&nbsp
    Griddles standard with pilot, flame failure and piezo ignition

    Oven

    80-300&deg C thermostatic control&nbsp
    Piezo ignition to pilot burner&nbsp
    Flame failure

    Cleaning and Servicing

    All models with easy clean stainless steel external finish&nbsp
    Lift off burner heads and vitreous enamelled burner spill covers&nbsp
    Stainless steel spill trays under open burner and griddle sections&nbsp
    Bottom sill removable for oven burner and pilot access&nbsp
    Removable oven racking and sole plate&nbsp
    Easy clean vitreous enamel oven and door inner&nbsp
    Access to all parts from front of unit
